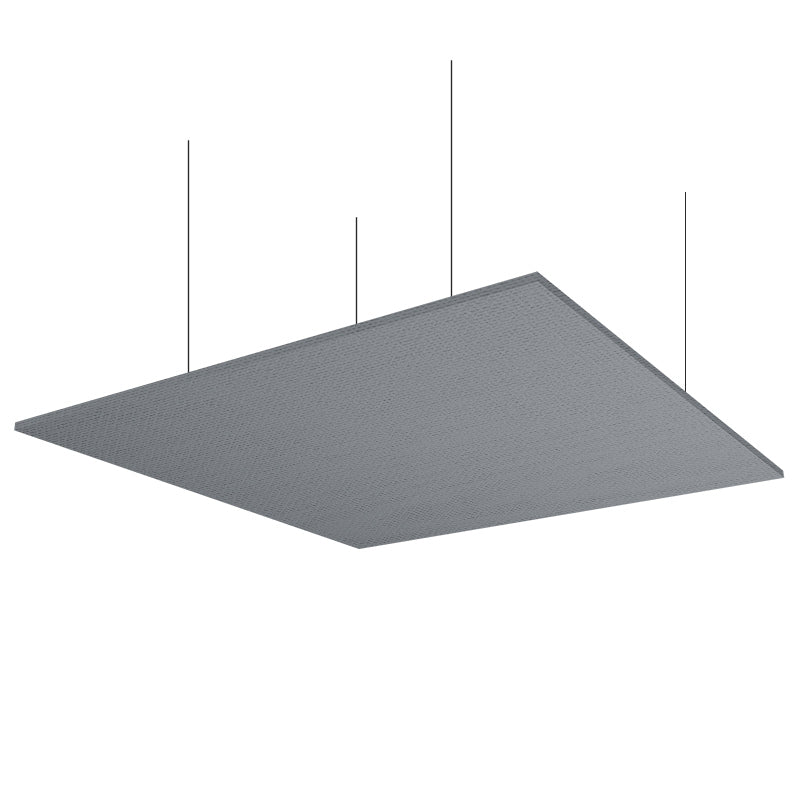

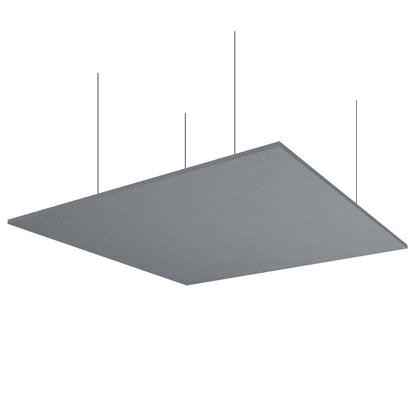

MuffleRaft Square Acoustic Ceiling Raft
MuffleRaft Square Acoustic Ceiling Raft
MuffleRaft Square is an innovative, high-quality acoustic raft designed to absorb excess noise from above to create a quieter, more peaceful environment below. This acoustic raft has been created with practicality, aesthetics, and acoustics in mind to bring you the ultimate acoustics solution for your space.
- High sound absorbency
- Helps to control reverberation
- Wide range of colours available
- Easy to install
- Ideal for multiple indoor environments
- Fixings Included
As this product is bespoke and made to order, refunds and exchanges are unavailable.
Dimensions (mm): 600 x 600 x 40 / 1000 x 1000 x 40 / 1200 x 1200 x 40
Sold per raft / Price displayed per raft
- Estimated Delivery: 3-4 Weeks
- This item is made to order
- Shipped from the UK
MuffleRaft acoustic rafts have been designed to absorb sound and aid in achieving the optimum level of acoustic comfort. Produced with aesthetics in mind, this acoustic raft will help resolve acoustic discomfort without sacrificing on style.

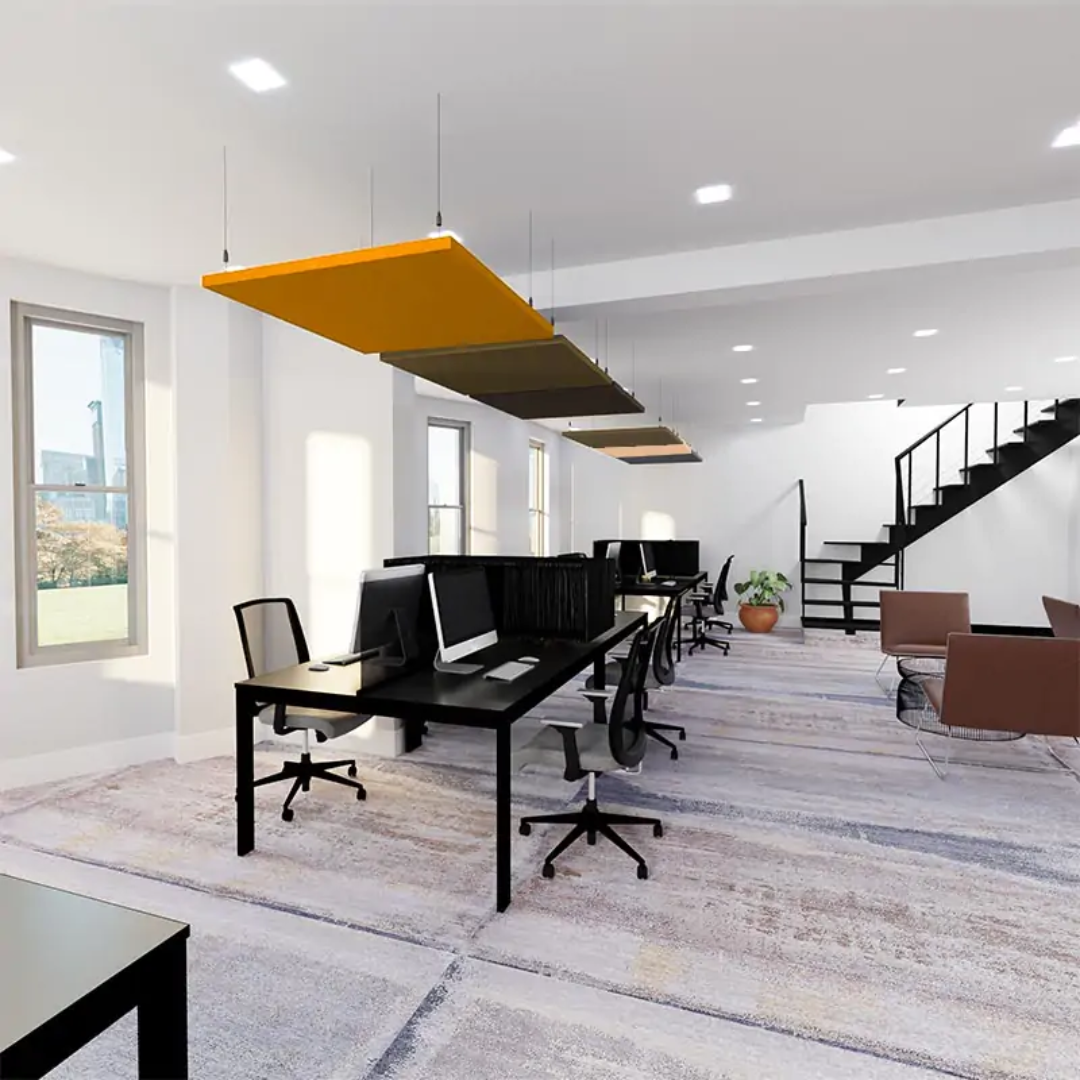

Suspended acoustic rafts are an ideal acoustic ceiling solution for places where air conditioning or other ceiling services would prevent direct fit panels from being installed. The rafts are easy to install, simply suspended using steel cables and spiral hooks. You can hang multiple rafts at different heights to enhance the dynamics of your space and create a unique aesthetic.
This product is available in a wide range of colours but if you are unable to find the best colour for your space, please feel free to browse through the colour swatches listed in our technical downloads section. If you require a colour that is not listed as an option on our website, please get it in touch with a member of our sales team.
The front and sides of this panel are wrapped in fabric. The rear of the panel is intentionally left exposed for effective installation.
All fixings required are included.
Installation
- To attach MuffleRaft to the ceiling, firstly feed the aluminium cable through the soffit fixing
- Secondly, fasten soffit fixing by tightening / screwing into ceiling fixing
- Lastly, attach the raft to fixing system using the eyelet hooks
Dimensions (mm): 600 x 600 x 40 / 1000 x 1000 x 40 / 1200 x 1200 x 40
Sold per raft / Price displayed per raft
As this product is bespoke and made to order, refunds and exchanges are unavailable.
Images for illustrative purposes only. Fixing amount and positioning will depend on the shape and size of the panel.
Product Specification
-
Environmental
-
Weight
Our MuffleRaft panels weigh in at 3kg/m2.
-
Fire Rating
MuffleRaft core board has been tested and offers Class O fire rating to BS476: Part 6.
Fabric facing complies with Class 1 to BS476: Part 7. Class O fabrics can be supplied on request.
